Products Advantages

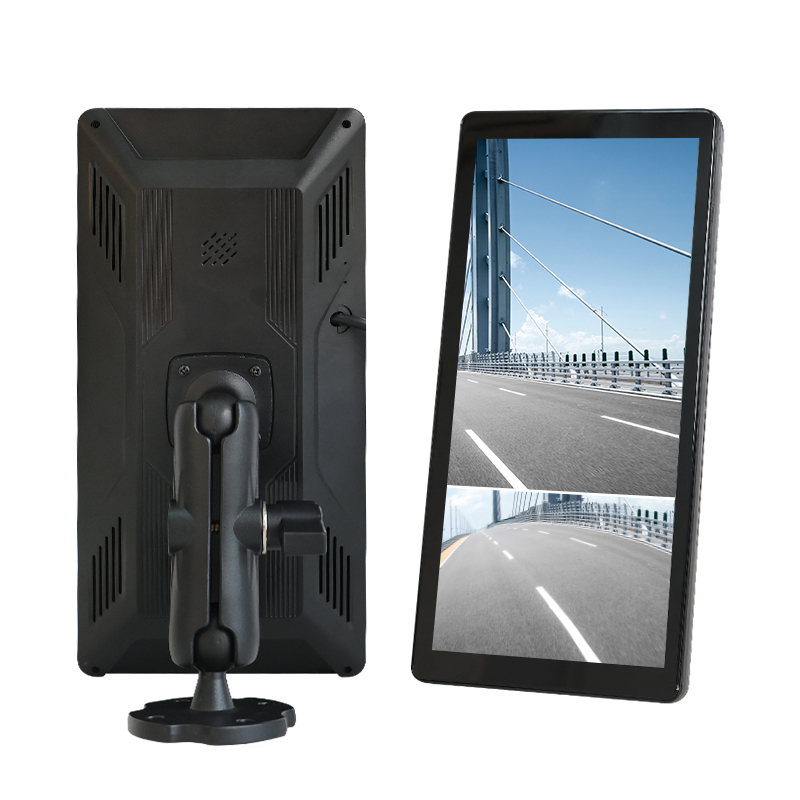

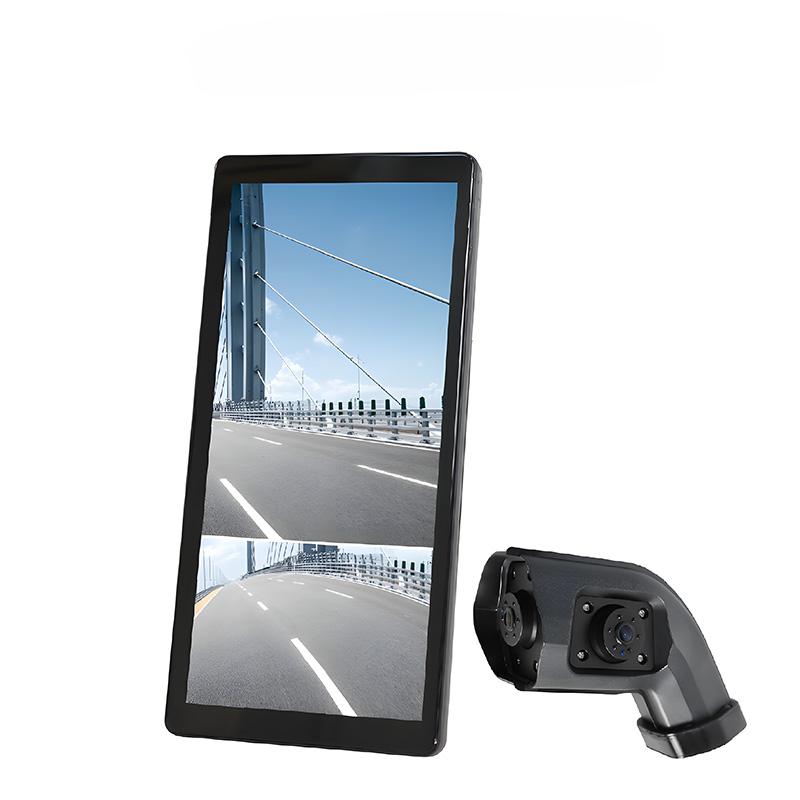

The large vehicle electronic rearview mirror display can be displayed in split screen, with touch function, voice broadcast, multi-language settings, 128G large-capacity storage, driving record loop playback, suitable for working in harsh environments with a low temperature of minus 20 degrees and a high temperature of 80 degrees.
Products Parameters
|
Item |
Parameters |
|
Screen Resolution |
1024*600 |
|
Voltage of monitor |
DC12V-DC35V |
|
Input signal |
1080P/720P |
|
Display mode |
Single screen/2 Split screen |
|
Image display ratio |
1:1/3:7/4:6 |
|
Loop recording |
5 minutes/10 minutes |
|
Blind spot warning calibration |
Can be set |
|
Sensitivity |
Can be set |
|
Mirror function |
Support |
|
Voice control |
Support Chinese voice control |
|
Audio |
Support recording and playback |
|
Alarm |
Support |
|
Parking monitoring |
Support |
|
Touch function |
Support |
|
LOGO |
Customizable |
|
Operating temperature |
-20℃-70℃ |
|
Storage temperature |
-30℃-80℃ |
|
Power consumption |
Less than 2A |
|
Storage function |
Max support 128G |
|
Language |
Chinese, English, Korean,Japanese, Russian, French, etc. |
|
Interface |
4pin aviation connetor: |
|
1-power; 2-ground; 3-NC; |
|
|
4-video (corresponding to |
|
|
aviation interface numbers) |
|
|
Protection level |
More than IK07 |
|
Operating mode |
Touch |
|
Voltage of camera |
DC12V |
|
The angle of camera |
Down 110°/ Back 150° |
|
Waterproof level of camera |
IP67 |
|
Appearance of camera |
Various appearances available |
Products Accessories
Monitor\Camera\Cable\Remote Controller\Box\Instruction Book
Factory Slogan
Leading Technology, Top Service!
Factory Capacity
Annual output value：100 million
Monthly production: 200000pcs/per Month
MOQ: 1000pcs
Factory Supports
OEM、 ODM、 LOGO-Customizable
Factories typically provide customers with support in the following areas:
1, Customized services: Customize product specifications, design and packaging according to customer needs to meet customers' special needs.
2, Technical support: Provide product technical parameters, operating instructions, technical training and other support to help customers better understand and use the product.
3, After-sales service: Provide product warranty period and after-sales service policy, including repair, replacement and return services, to ensure that customers have complete after-sales protection after purchase.
4, Supply chain support: Provide product supply cycles and logistics arrangements to ensure that products can be delivered to customers on time.
5, Market support: Provide marketing materials, promotional activity support, etc. to help customers promote product sales.
Patents & Certificate
IS09001:2015、IATF16949:2016、E-Mark、CE、ROHS、SGS、RED
QC Control
QC, IQC, IPQC, QA, FQC, OQC
